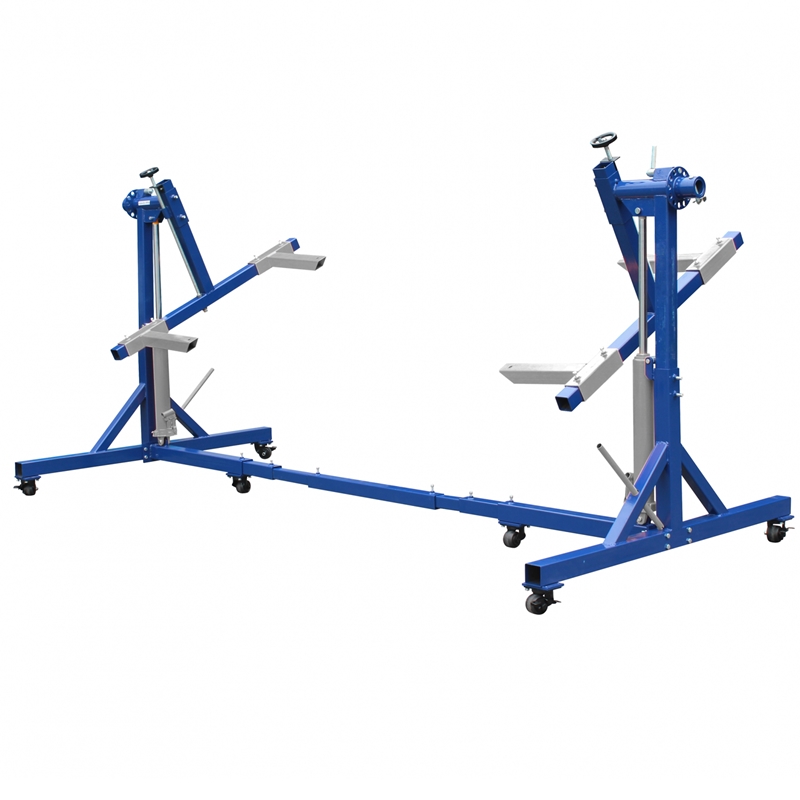

Tuxedo Car Rotator - 3,000 Lb Capacity

FREE SHIPPING!

Key Features
3,000 lb Capacity – Ideal for vehicle frames, tub-based bodies, and light-duty chassis.

360° Rotation with Locking – Provides full rotation and secure stops at any of twelve fixed positions.

Heavy-Duty Balancing System – Ensures smooth and controlled spinning, even with uneven loading.

Height Adjustable – Dual hydraulic jacks (rated at 6,000 lbs each) adjust the working height between 17‑3/4″ and 45‑1/4″.

Telescoping Center Bar – Three-piece adjustable bar extends up to 21′‑6″, accommodating a wide range of vehicle sizes.

Mounting Versatility – Four 16″ mounting arms for direct vehicle frame attachment or optional accessories (e.g., valence, uni‑body, leaf spring brackets).

Spinner Casters – Six heavy-duty phenolic resin swivel casters for easy repositioning around the shop.

Durable Finish – Powder-coated steel resists corrosion and holds up in busy environments.

Secure Locking Mechanism – Locks securely at any angle for stable positioning during work.


Specifications
Attribute Specification
Maximum Capacity 3,000 lbs
Overall Width 58‑7/8″
Overall Height 77‑1/8″
Overall Length 258‑1/4″
Lifting Height Range 17‑3/4″ – 45‑1/4″
Telescoping Length Up to 21′‑6″
Mounting Arms Four × 16″
Casters Six phenolic swivel casters
Shipping Weight Approximately 410 lbs
Finish Powder coating


Benefits & Applications
One-Person Operation – The balancing and locking systems allow you to rotate and lock a vehicle frame solo, reducing assistance needs.

Ergonomic Working Posture – Height-adjustability keeps your back in line for more comfortable welding, grinding, or detailing.

Customizable Setup – Compatible with various brackets and accessories to fit unibody, valence, leaf-spring, and specialty vehicle bodies.

Mobile & Stackable – Heavy-duty casters enable easy movement, while the breakdown design simplifies storage when not in use.

Included Components
Dual hydraulic jacks (6,000 lb capacity)

Four 16″ mounting arms

Telescoping center bar (adjustable to 21′‑6″)

Six phenolic resin swivel casters

Locking rotation gear and angle locks

Powder-coated steel tubular frame
