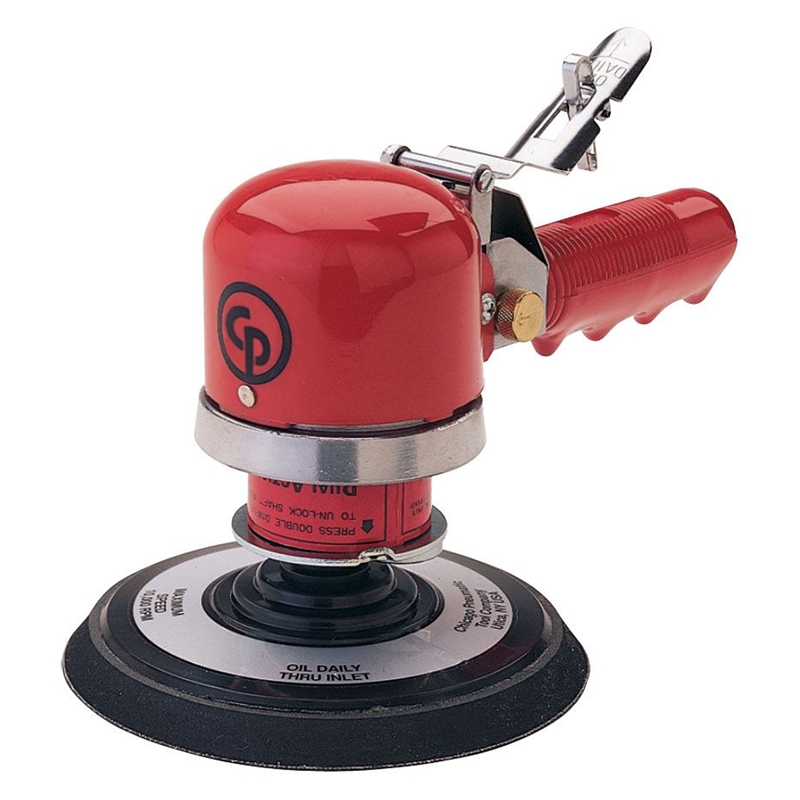

Chicago Pneumatic 6" DAQ Orbital Sander - CP870

The Chicago Pneumatic 6" DAQ Orbital Sander CP870 is a well-known power tool designed for sanding and finishing various surfaces.

Designed for body shops applications like blending and smoothing filler, feather edging and pre-paint preparation, this 6" (150mm) dual action sander series offers the possibility to choose between an pneumatic orbital sander (3/8" - 10mm orbit) and a pneumatic rotary sander.

Key Features:

• Dual Action (Random Orbital) Motion: Simultaneous rotation and orbiting of the sanding disc for smoother finish and reduced swirl marks
• Variable Speed Control: Adjustable speed settings for different sanding and finishing tasks
• Ergonomic Grip: Provides comfortable handling and reduced user fatigue
• Built-In Regulator: Allows control over the tool's speed for optimal performance

Technical Specifications:

• Model: Chicago Pneumatic CP870
• Type: Dual Action (Random Orbital) Sander, Non-Vacuum

Performance:

• Disc Diameter: 6 inches (150 mm)
• Disc Attachment: PSA / adhesive-backed sanding discs
• Orbit Diameter: 3/8" (10mm)
• Free Speed: 10,000 RPM (Rotations Per Minute)
• Power Source: Air-powered (Pneumatic)
• Air Consumption at Free Speed: 18 cfm
• Sound Pressure: 83 dB(A)

Dimensions and Weight:

• Length: 7.6 in.
• Height: Varies, typically around 3 to 4 inches (7.5 to 10 cm)
• Weight: 4.25 lbs.

Air Connection:

• Air Inlet: Standard 1/4" NPT (National Pipe Thread)
• Max. Recommended Air Pressure: 91 PSI

Additional Information:

• Applications: Suitable for automotive refinishing, woodworking, metalworking, and other sanding and finishing tasks
